220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS
The rated power of the transformer is 2 x (3635 – 2562/2562) kVA with OFAF cooling, the primary voltage is 22 kV with 462,433,390,346,303,260V tapping range(NLTC), the secondary voltage is 2 of 462 V, they formed a vector group of Yy0y6 & Dy5y11.

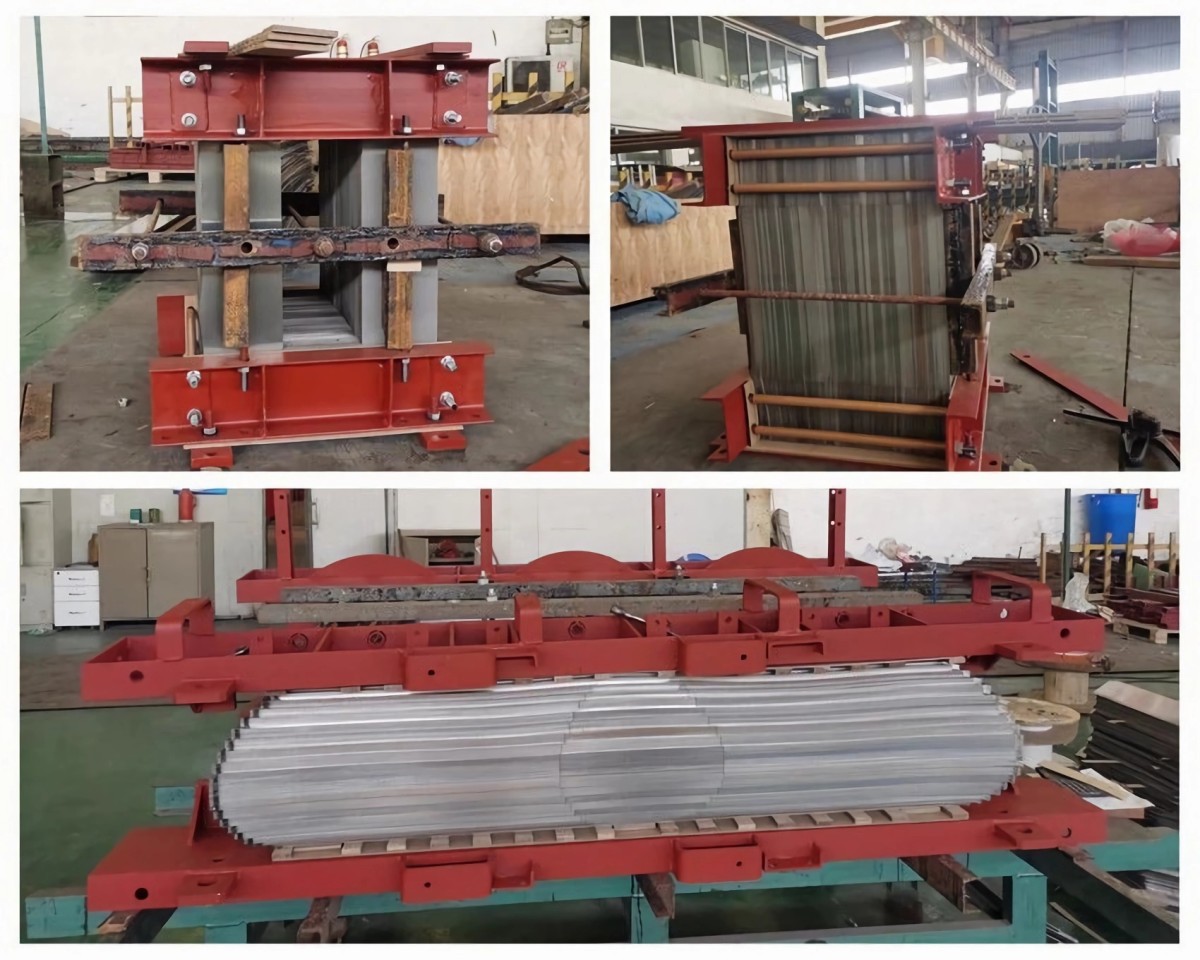

Our 2 x (3635 – 2562/2562) kVA rectifier transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
Scope of Supply
Product: Oil Immersed Rectifier Transformer
Rated Power: Up to 100 MVA
Primary Voltage: Up to 110 KV
The transformer can be designed according to customer’s requirements
Technical Data Sheet
3635*2 kVA oil immersed rectifier transformer specifications and data sheet

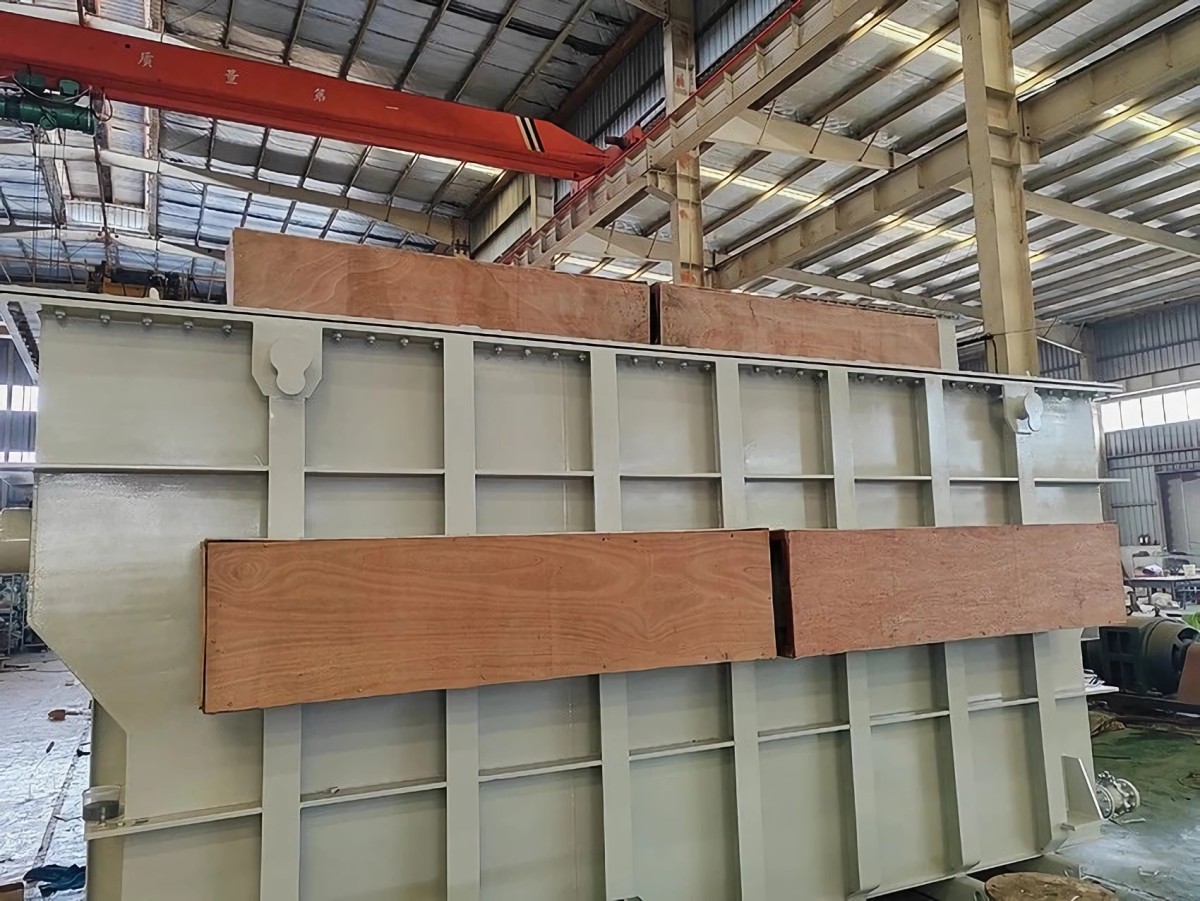

Packing attention
Special attention shall be paid to the loading of the transformer when loading: due to the concentrated weight of the transformer, the concentrated load at the bottom of the ship shall be guaranteed when considering the barge to be carried, and reinforcement measures shall be taken if necessary; the bumping wave of the ship shall be taken into consideration in water transportation, and the binding must be firm.
RELEVANT RECOMMENDATION
![2840 KVA 12.47/0.6KV Dry Type Traction Power Rectifier Transformer]( "2840 KVA 12.47/0.6KV Dry Type Traction Power Rectifier Transformer")
2840 KVA 12.47/0.6KV Dry Type Traction Power Rectifier TransformerThis transformer feed a diode rectifier, 6 phase, 12 pulses, which feeds the load with DC voltage 750v, the rectifier is not equipped with smoothing or interphase coil on 750v side, we are responsible of the compatibility of the transformer-rectifier system. The K factor of the transformer is K13, which means the transformer is operating in a heavy harmonic environmental, which is considered by us during design. The transformer is working 20/24 hour, 365 days at -35 to +40 ℃ and 100% humidity. The transformer is able to work at 150% of the rated power with peak of 300% for 20seconds due to peak of voltage every 3 minute without exceeding the temperature of 100℃,the temperature rise is 80℃ max at rated power, the insulation of the copper winding is adopt NOMEX with class H(220℃)![6 MVA 22 kV Oil Immersed Traction Rectifier Transformer]( "6 MVA 22 kV Oil Immersed Traction Rectifier Transformer")
6 MVA 22 kV Oil Immersed Traction Rectifier TransformerTransnet's traction substations consist of single and double units and in exceptional cases a three unit rectifier configurations.
Each rectifier unit comprises of a set of high voltage AC disconnects, primary circuit breaker, two current transformers and a traction transformer connected for twelve-pulse rectification with its control and protection circuitry.
The rated power of the transformer is 6000 kVA with ONAN cooling, the primary voltage is 22 kV with ±2*2.5% tapping range(NLTC), the secondary voltage is 2 of 1.22 kV, also a tertiary winding is designed to supply a auxiliary 150 KVA 1.22 KV power, they formed a vector group of Y/d11y0y0n.![3635*2 KVA Oil Immersed Rectifier Transformer]( "3635*2 KVA Oil Immersed Rectifier Transformer")

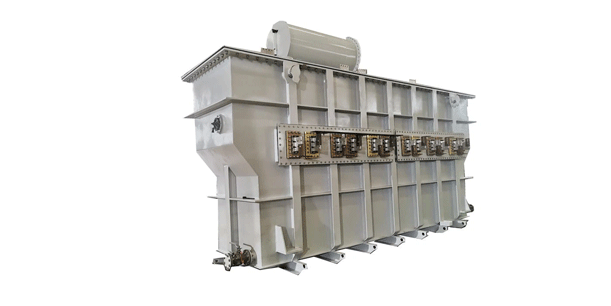

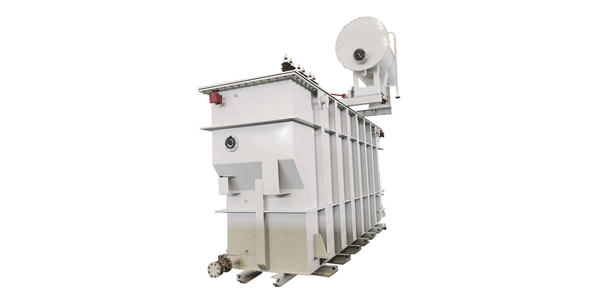

3635*2 KVA Oil Immersed Rectifier TransformerThe rated power of the transformer is 2 x (3635 – 2562/2562) kVA with OFAF cooling, the primary voltage is 22 kV with 462,433,390,346,303,260V tapping range(NLTC), the secondary voltage is 2 of 462 V, they formed a vector group of Yy0y6 & Dy5y11.
