220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS
The rated power of the transformer is 25000 KVA, the primary voltage of the transformer is 33KV and the secondary voltage is 11KV. These substation step down transformers were designed with ABB OLTC and equipped with AVR. Our 25 MVA power transformers was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
Scope of Supply
Product: Oil Immersed Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
Technical Specification
RELEVANT RECOMMENDATION
![25 MVA 25000 KVA Substation Step Down Power Transformer]( "25 MVA 25000 KVA Substation Step Down Power Transformer")

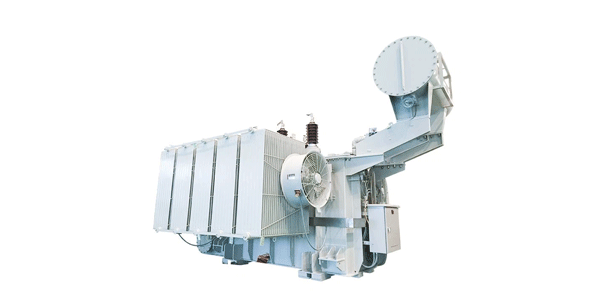

25 MVA 25000 KVA Substation Step Down Power TransformerThese substation step down transformers were designed with ABB OLTC and equipped with AVR.![8000 KVA 33/6.6/0.4KV Three Winding Oil Immersed Power Transformer]( "8000 KVA 33/6.6/0.4KV Three Winding Oil Immersed Power Transformer")
8000 KVA 33/6.6/0.4KV Three Winding Oil Immersed Power Transformerthe rated power of the transformer is 8000 KVA. It is three windings transformer, it has two output voltage. the primary voltage of the transformer is 33 KV, the secondary is 6.6 KV and 0.4 KV. This is three phase transformer, the cooling method is ONAN, Our 8 MVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.![66kV Oil Immersed Power Transformer]( "66kV Oil Immersed Power Transformer")
66kV Oil Immersed Power TransformerThe power transformer is used in the substation, the purpose is making transformer up to 100MVA 220KV. The rated power of the transformer is 20000 kVA, the primary voltage is 66 kV, the secondary voltage is 11 kV.![18.75MVA 66/11.55kV Three Phase Step Down Oil Immersed Power Transformer]( "18.75MVA 66/11.55kV Three Phase Step Down Oil Immersed Power Transformer")
18.75MVA 66/11.55kV Three Phase Step Down Oil Immersed Power TransformerThis rated power is 15 MVA with ONAN cooling method. The power is up to 18.75MVA when it is ONAF. The voltage is 66 to 11.55 kV, 66 kV primary, 11.55 kV secondary.![76 MVA Step Down 110 KV To 35 KV Three Phase Power Transformer With OLTC]( "76 MVA Step Down 110 KV To 35 KV Three Phase Power Transformer With OLTC")
76 MVA Step Down 110 KV To 35 KV Three Phase Power Transformer With OLTCThis 76 MVA power transformer was it’s a step down transformer 110 kV to 35 kV, the primary voltage is 110 kV, the secondary voltage is 35 kV, the transformer is equipped with on load tap changer, the tapping range is ±8*1.25% at primary side, the cooling is ONAF.![220KV Power Transformer]( "220KV Power Transformer")
220KV Power Transformer220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
