220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS
The rated power of the transformer is 750 kVA with ONAN cooling. The primary voltage is 13.8kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.4kV, they formed a vector group of Dyn11.
Our 750 KVA pad mounted transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!
Scope of Supply
Product: Pad mounted transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
750 KVA transformer specifications type and data sheet
Advantages of Pad-mounted Transformer:
1.The internal structure of the pad mounted transformer is reasonably arranged, and the space occupied is relatively small.
2.Convenient and simple operation method and small volume, convenient and quick assembly.
3.High application income.
4.The way of combination is flexible.
5.Safe and reliable.
6.High level of automation.
RELEVANT RECOMMENDATION

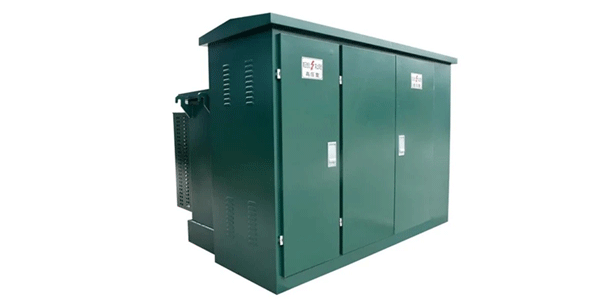

![Pad Mounted Transformer 13.8kV IEEE Standards]( "Pad Mounted Transformer 13.8kV IEEE Standards")
Pad Mounted Transformer 13.8kV IEEE StandardsThe rated power of the transformer is 750 kVA with ONAN cooling. The primary voltage is 13.8kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.4kV, they formed a vector group of Dyn11.![225 KVA-24.94GRDY/14.4-0.48GrdY/0.277 KV Step Down Three Phase Pad Mounted Transformer]( "225 KVA-24.94GRDY/14.4-0.48GrdY/0.277 KV Step Down Three Phase Pad Mounted Transformer")
225 KVA-24.94GRDY/14.4-0.48GrdY/0.277 KV Step Down Three Phase Pad Mounted TransformerThe rated power of the transformer is 225 kVA, with the primary voltage 24.94GRDY/14.4 kV to secondary voltage 0.48GrdY/0.277 kV. The connection group is YNyn0, and there are 5 taps ABCDE to adjust the voltage at the primary side, where can output 5 different voltages as wanted.
The 225 kVA Pad mounted transformer is welled design with 98.94% efficiency and our advanced manufacturing process, which may satisfy various voltage requirements.
