220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS

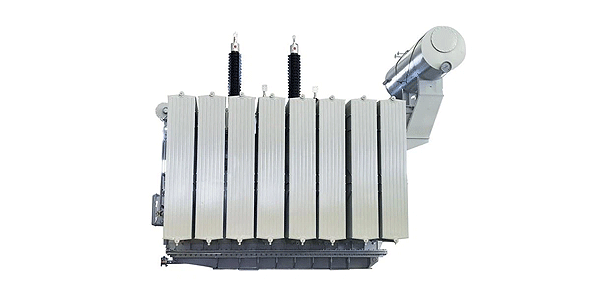

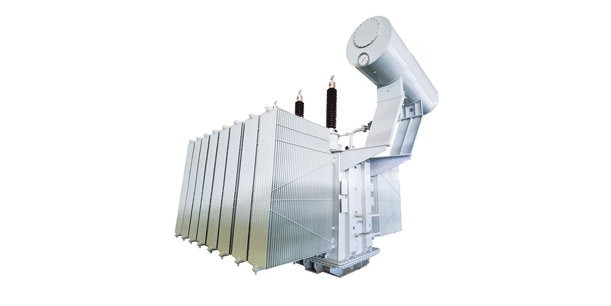

This rated power is 15 MVA with ONAN cooling method. The power is up to 18.75MVA when it is ONAF. The voltage is 66 to 11.55 kV, 66 kV primary, 11.55 kV secondary. The on load tap changer has 17 steps, +10%; -10% in 1.25% Steps. There are two conservators for the transformer. And the transformer has Automatic Voltage Regulator (AVR), it can adjust voltage automatically. At the same time, the voltage is suitable for parallel operation.
Scope of Supply
Product: Liquid Filled Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
The transformer can be designed according to customer's requirements.
Technical Specification
18.75 MVA power transformer specification and data sheet

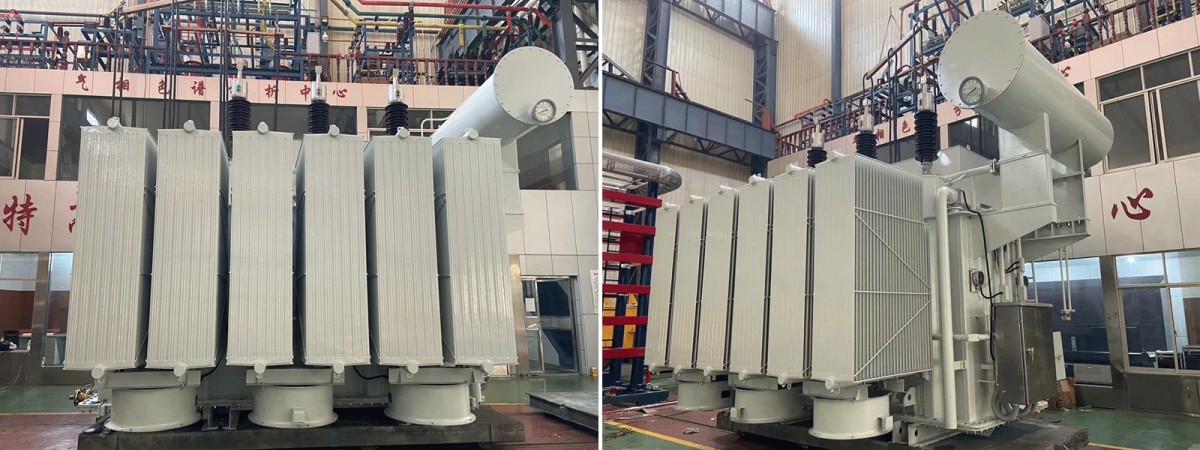

Finished 18.75MVA 66/11.55kV Transformer

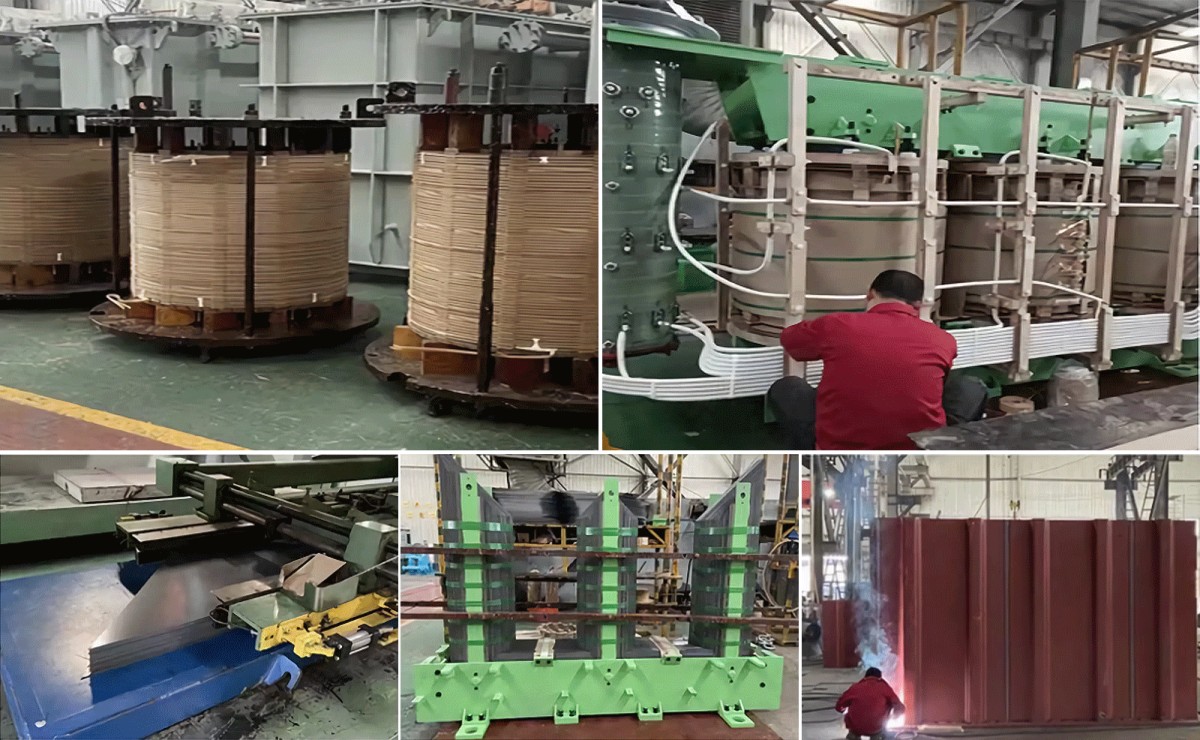

Manufacturing correlation

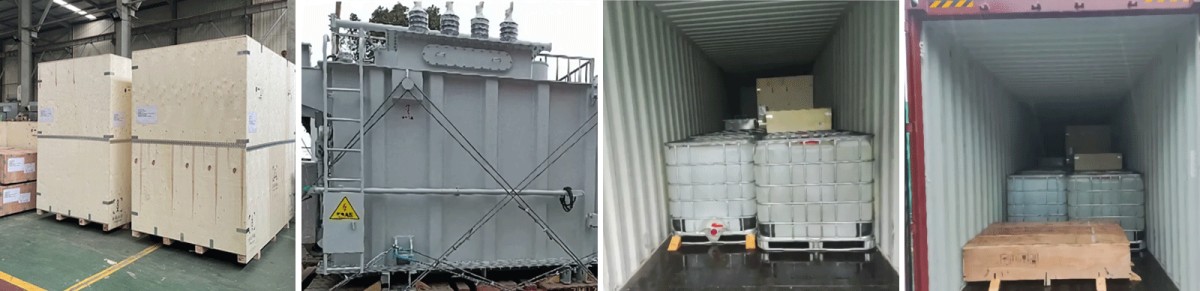

Packing and Delivery
