220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS

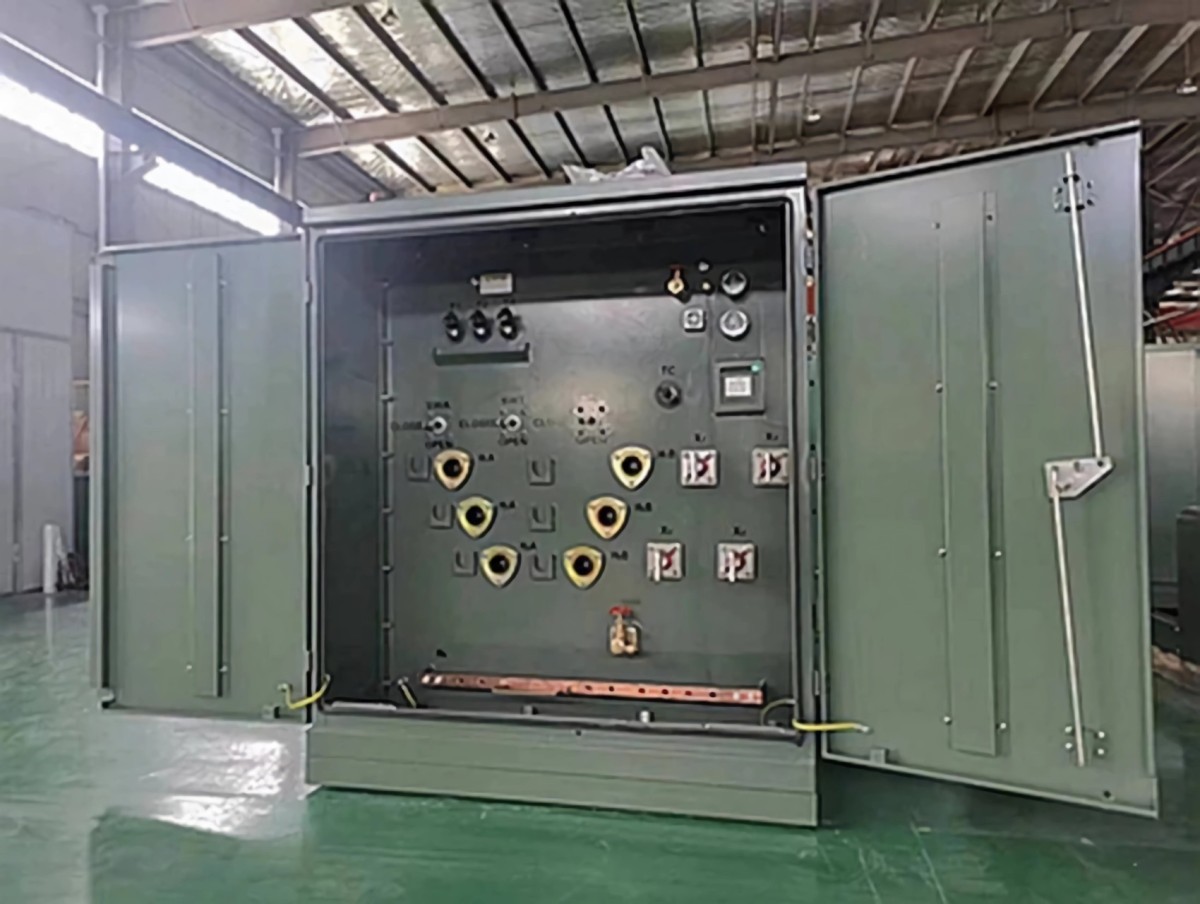

The rated power of the transformer is 225 kVA, with the primary voltage 24.94GRDY/14.4 kV to secondary voltage 0.48GrdY/0.277 kV. The connection group is YNyn0, and there are 5 taps ABCDE to adjust the voltage at the primary side, where can output 5 different voltages as wanted.
The 225 kVA Pad mounted transformer is welled design with 98.94% efficiency and our advanced manufacturing process, which may satisfy various voltage requirements.
Scope of Supply
Product: Pad mounted transformer
Technical Specification
225 kVA Pad mounted transformer specification and data sheet
