220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS
Single phase and three phase pole mounted transformer. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve the quality of power supply. The transformer is designed with high efficiency and energy-saving coil core structure. The transformer is characterized by small volume, small infrastructure investment, reduced radius of low-voltage power supply and more than 60% loss of low-voltage line. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and simple maintenance. It is suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, and can also be used for energy-saving transformation of railway and urban power grid. Our transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
RELEVANT RECOMMENDATION
![1.6 MVA 1600 KVA 11KV Delta Star Distribution Transformer]( "1.6 MVA 1600 KVA 11KV Delta Star Distribution Transformer")
1.6 MVA 1600 KVA 11KV Delta Star Distribution TransformerThe rated power of the transformer is 16000 KVA. the primary voltage of the transformer is 11 KV and the secondary is 0.4 KV. This is a delta star transformer, high voltage of this transformer use delta connection and the low voltage is use star connection. Our 1.6 MVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.![112 KVA 11KV Power Distribution Transformer]( "112 KVA 11KV Power Distribution Transformer")
112 KVA 11KV Power Distribution TransformerThe rated power of the transformer is 112 KVA. This 112 KVA Step Down transformer 11kv to 0.4kv, the primary voltage is 11kv, the secondary voltage is 0.4kv. We adopted copper wire at HV side and copper foil at LV side. Our 112 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.![200 KVA Power Distribution Transformer]( "200 KVA Power Distribution Transformer")
200 KVA Power Distribution TransformerThe rated power of the transformer is 200 kVA with ONAN cooling, the primary voltage is 0.525/0.55 kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.38 kV, they formed a vector group of Yyn0.![13.8-0.12/0.24kV Single Phase Pole Mounted Transformer]( "13.8-0.12/0.24kV Single Phase Pole Mounted Transformer")
13.8-0.12/0.24kV Single Phase Pole Mounted TransformerThe max rated power of the transformer is 167 KVA, This is also the conventional maximum capacity single-phase transformer. For special single-phase transformers, we have made a maximum of 500kVA. the primary voltage and secondary voltage of the transformer are 13.8-0.12/0.24kV, The single phase transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.![500kVA-33/6.6kV Distribution Step Down Transformer]( "500kVA-33/6.6kV Distribution Step Down Transformer")
500kVA-33/6.6kV Distribution Step Down TransformerThe primary voltage and secondary voltage of the transformer are 33/6.6kV. The transformer is equipped with high and low voltage fuses for better protection. Because of the fuse, the height of the transformer is much higher than that of the ordinary transformer. In addition, the transformer high and low voltage bushings are tilted at a 45° Angle to better connect the overhead cables. The 500kVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.![Single and Three Phase Power Pole Mounted Distribution Transformer]( "Single and Three Phase Power Pole Mounted Distribution Transformer")

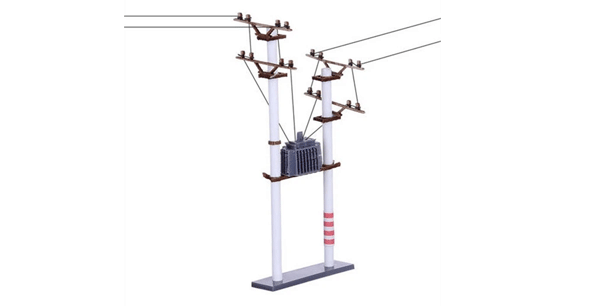

Single and Three Phase Power Pole Mounted Distribution TransformerSingle phase and three phase pole mounted transformer. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve the quality of power supply. The transformer is designed with high efficiency and energy-saving coil core structure. The transformer is characterized by small volume, small infrastructure investment, reduced radius of low-voltage power supply and more than 60% loss of low-voltage line. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and simple maintenance. It is suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, and can also be used for energy-saving transformation of railway and urban power grid. Our transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
