220KV series oil immersed power transformer produced with global advanced technology and equipment, continuously updating the manufacturing experience and processing. We developed high-grade power transformer that sufficiently satisfy the operation conditions of domestic and foreign power grid.
‹
›
PRODUCT DETAILS
The rated power of the transformer is 112 KVA. This 112 KVA Step Down transformer 11kv to 0.4kv, the primary voltage is 11kv, the secondary voltage is 0.4kv. We adopted copper wire at HV side and copper foil at LV side. Our 112 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
112 KVA transformer specifications and data sheet
Assembly：

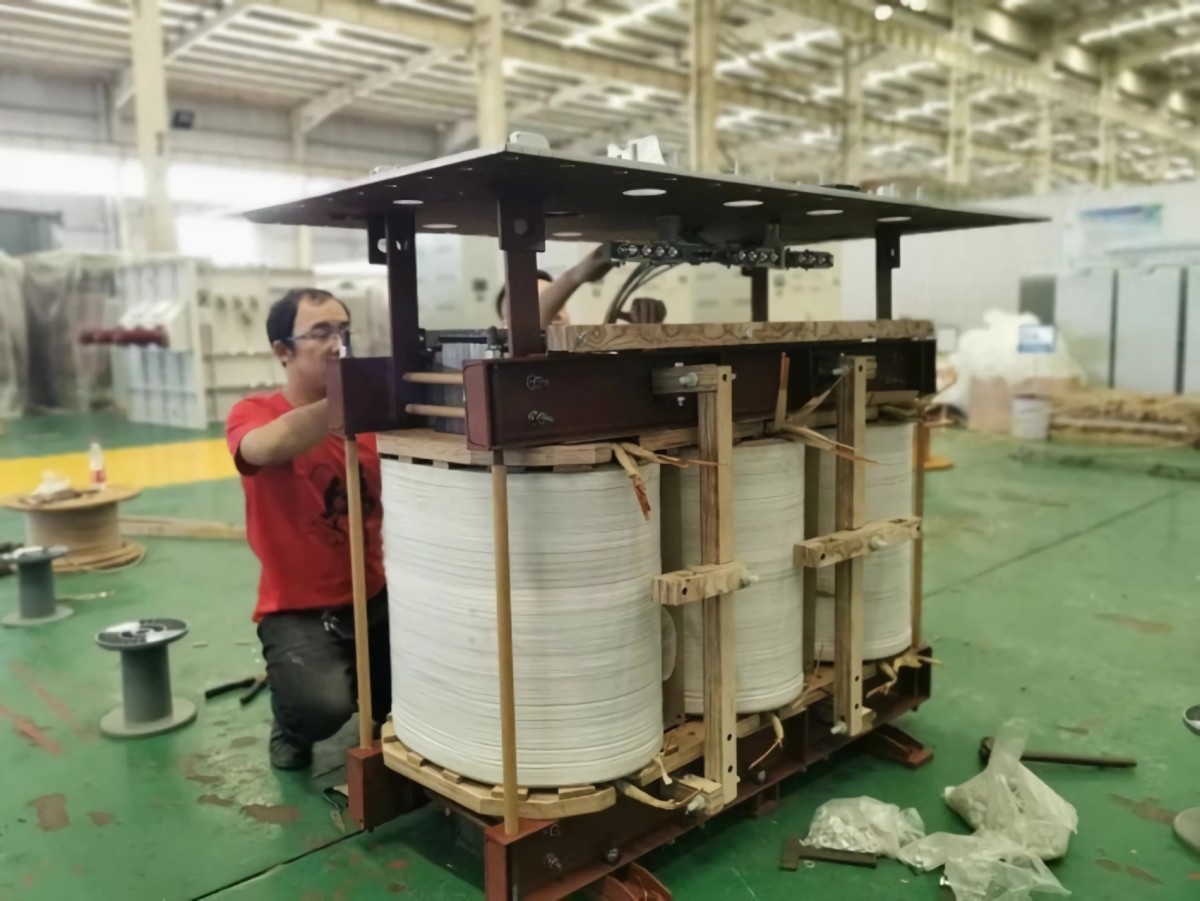

The wound coils are placed carefully in the assembled core. Insulations are given wherever required using materials like press board. The CORE bolt and tie rods are fixed in position. The Primary and Secondary windings are connected as per the requirement.
The complete assembly is kept in the Hot Air Chamber and a high temperature is maintained to prevent any moisture in the CORE coil assembly.
